Information |
||
|---|---|---|
| PD No. | BTLM-0.075X-220-H1 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 215 Φmm | |
| Mag.(x) | 0.075x | |
| WD | 220±3 mm | |
| Max. Sesnor Size | 16.0(1") Φmm | |
| F/# | F4.35 | |
| MTF | >195lp/mm | |
| D.O.F | ±30.9@F4.35 | |
| Distortion | <0.05% | |
| Telecentricity | <0.1° | |
| I/O | 560±3 mm | |

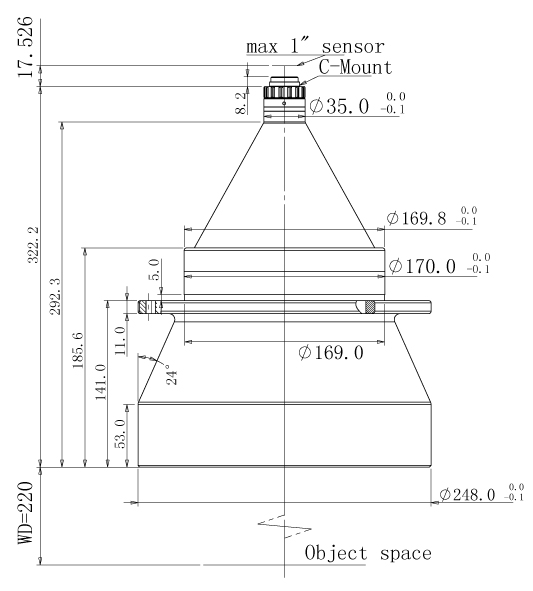

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 322.2 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 8.45 Kg | |
| Variable Iris | No | |
| Coaxial Light | No | |
Field of View(mmxmm) |
||
|---|---|---|
| 1/1.8" EV76C570 (7.2x5.4) | 165.7x131.1 | |
| 1/1.7" IMX226 (7.5x5.6) | 189.2x100.1 | |
| 2/3" IMX250/264 (8.45x7.1) | 175.1x116.8 | |
