Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | Mars Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor |
OnSemi |
|
| Sensor | XGS12000 | |
| Shutter | Global Shutter | |
| Sensor Size | 1" | |
| Sensor Type | CMOS | |
| Resolution | 4096 px x 3072 px | |
| Pixel size | 3.2 μm x 3.2 μm | |
| Frame Rate | 9 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 70.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O |
1 input(opto-isolated)， 1 output(opto-isolated), 1 bidirectional custom non-isolated I/O |
|
| Power Input |
PoE power supply / 6-24 VDC |
|
Design |
||
|---|---|---|
| Design | Compact industrial design | |

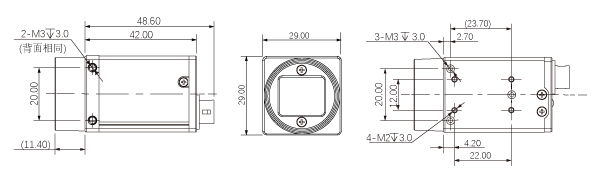

| Dimension (L x W x H) | 29 mm x 29 mm x 42 mm | |
| Lens Mount |
C-mount |
|
| Working Temperature | 0 - 50°C（Operating），-30 - 70°C（Storage） | |
| Weight（Typical） |
88g
|
|
Software Environment |
||
|---|---|---|
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows，Linux | |
| Conformity | GigE Vision and GenICam | |
