Information |
||
|---|---|---|
| PD No. | CP-1203 | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Resolution | 4096 px x 2 px | |
| Pixel size | 7 μm | |
| Pixel Clock | 40 MHz，60 MHz，70 MHz，85 MHz | |
| Tap Type | 2/4/8/10 Taps | |
| Line Rate |
40 kHz@ Mono 8（Base） 50 kHz@ RGB 8（80-bit） 100 kHz@ Bayer RGBG 8（Full） |
|
| Mono/Color | Color | |
| Image Format | Mono 8，RGB 8，Bayer RGBG 8 | |
EMVA Data |
||
|---|---|---|
| Dynamic range (typical) | 65.6 dB | |
| Exposure Time | 5μs~10ms | |
Camera Data |
||
|---|---|---|
| Interface | CameraLink | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | Configurable output and input × 4 | |
| Power Supply | DC12-24V | |
| Power Consumption | 12V @ 6W | |
Design |
||
|---|---|---|

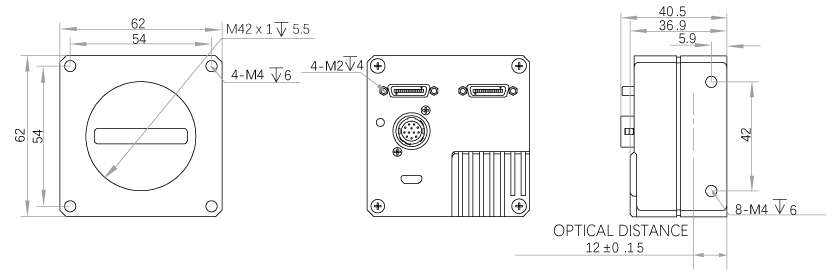

| Dimension(L x W x H) | 62.0 mm × 62.0 mm × 36.9 mm | |
| Lens Mount | M42(FBL 12) | |
| Operating Temperature | -20- 56°C（Working），-30- 80°C（Storage） | |
| Weight | 238g | |
Software Environment |
||
|---|---|---|
| Driver&SDK | LEO Series Camera Software Suite or 3rd party Cameralink Software | |
| Operating System | Windows | |
| Conformity | Cameralink and GenICam | |
