Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Gpixel | |
| Sensor | Gsprint4521 | |
| Shutter | Global Shutter | |
| Sensor Size | 23.04 mm × 18.43 mm | |
| Sensor Type | CMOS | |
| Resolution | 5120 × 4096 | |
| Pixel size | 4.5 μm x 4.5 μm | |
| Frame Rate | 222 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 65.0 dB | |
| Signal-to-Noise Ratio | 43.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | CoaXPress | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 opto-isolated input, 1 opto-isolated output, 1 RS232, 1 RS-485 | |
| Power Supply | 24 VDC | |
Design |
||
|---|---|---|

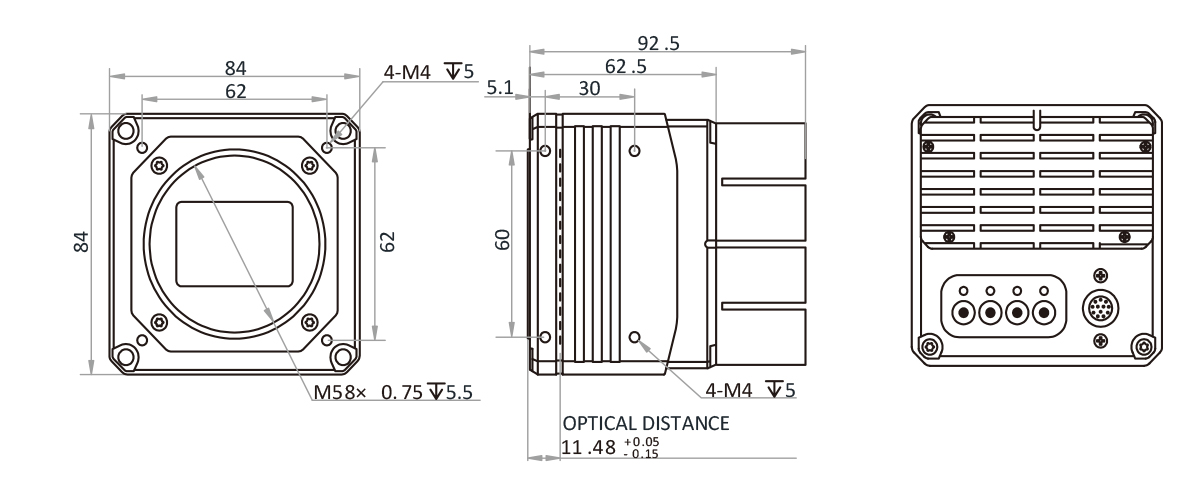

| Dimension(L x W x H) | 84 × 84 × 62.5 mm | |
| Lens Mount | M58 | |
| Operating Temperature | 0- 50°C（Working），-30- 70°C（Storage） | |
| Weight | 650g | |
Software Environment |
||
|---|---|---|
| Driver&SDK | Frame grabber software complies with CoaXPress protocol | |
| Operating System | Windows | |
| Conformity | CoaXPress,GenICam | |
