VT-BTLP-V1-118

1. Side testing for 1-10mm small parts;

2. All visual sides have the same optical magnification;

3. Various three-dimensional co-construction of multi-faceted imaging at one time greatly improve detection efficiency and reduce equipment costs;

4. Compatible with industrial cameras on the market.

Inquire now
Product Description
Product parameters
Product Specifications

General Information

PD No. CP-0360
PD Line VT-BTLP Series
Type 360 Multi-Angle Imaging Device

Optical Specifications

Sensor Size 1/1.8"
Wavelength range 400-680 mm
Working Distance 19-23 mm
MTF30 >190 lp/mm
Best Aperture(F/#) 4.6

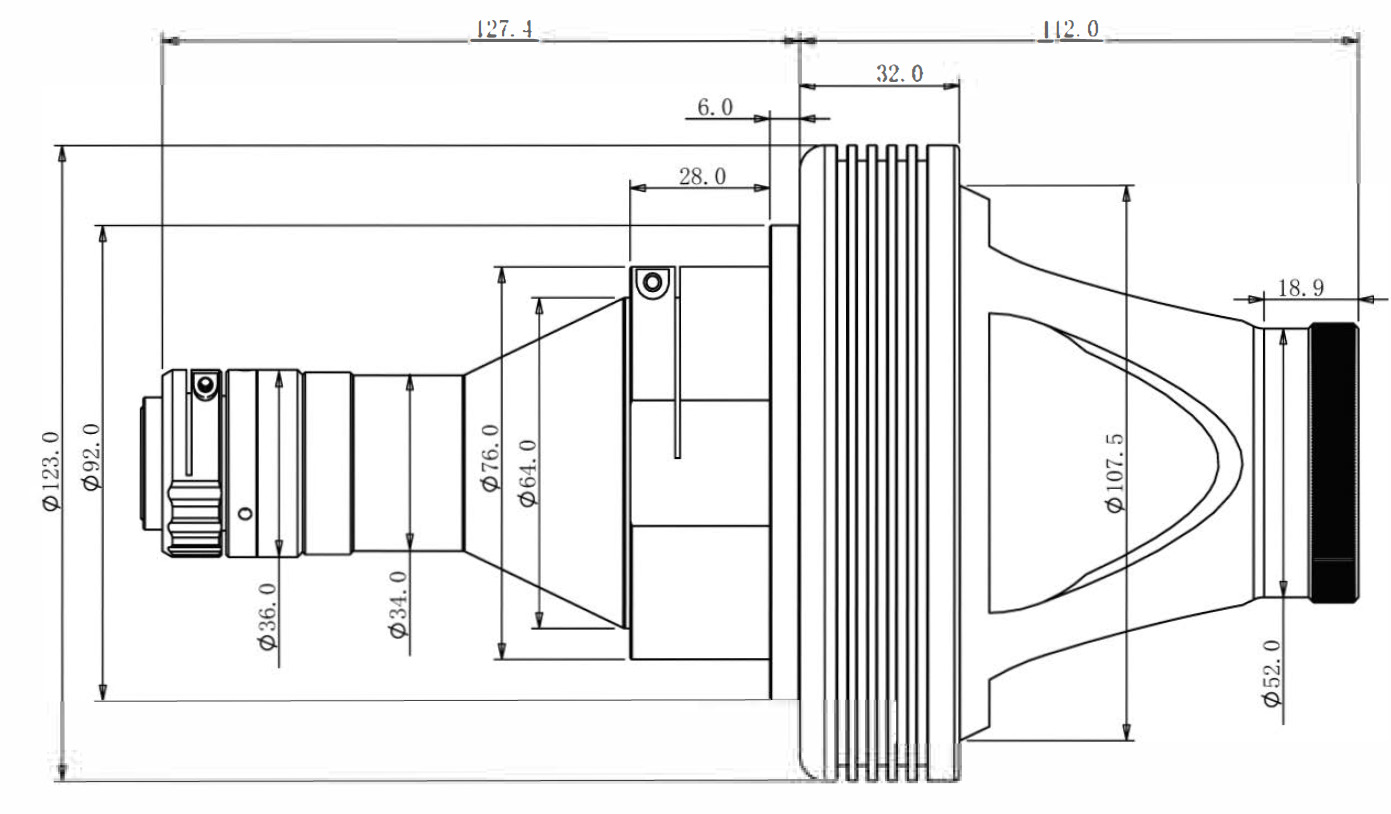

Mechanical Specifications

Diameter 123 mm
Length 239.4 mm
Mount C-Mount

Electrical specs

llluminator voltage 24V
llluminator Power 18 W

Max object inspection height

M1.0 1.5 mm
M1.2 1.75 mm
M1.7 1.8 mm
M2.0 2.4 mm
M2.5 2.7 mm
MΦ3 4 mm
MΦ4 4.9 mm
MΦ5 5 mm
MΦ6 6 mm
MΦ8 5 mm
MΦ10 4.5 mm
