[ RETURN LIST ] HOME>PRODUCTS>INDUSTRIAL LENSES
PRODUCTS
VT-360LEN-OUT02

1. High resolution and compact design

2. Used to achieve 360° side view imaging of small objects

3. The minimum measuring object is 4.5mm (outer surface)

4. Suitable for detecting components such as drug containers, bottlenecks, and other threaded objects

Inquire now
Product Description

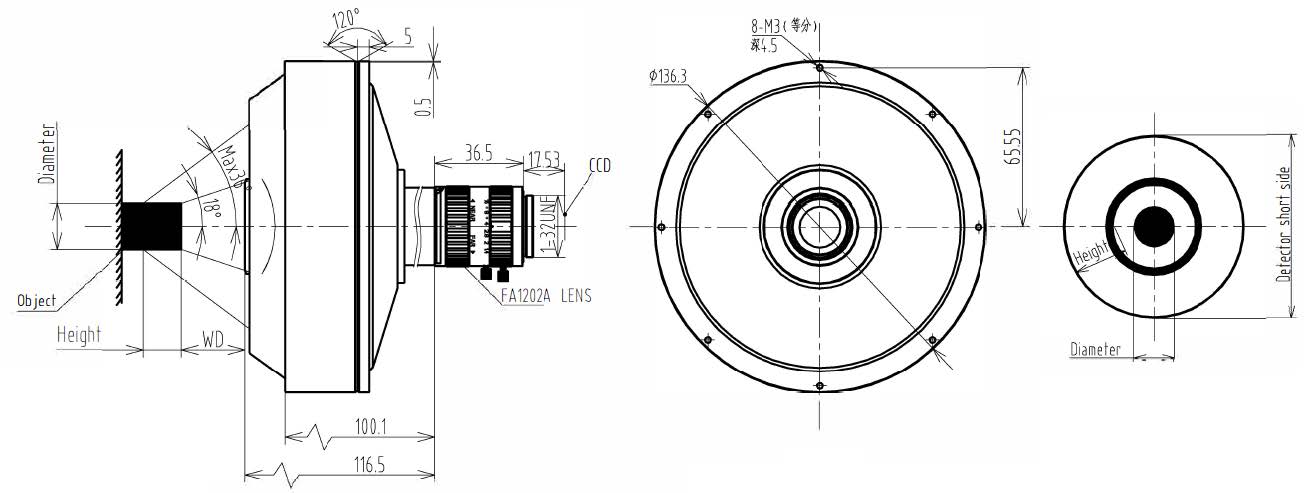

Technical Drawing
Documents & Downloads

General Information

PD No. CP-0360
PD Line FA Lens series
Type 360 OUTER/INNER SURFACE LENSES

Optical Specifications

Sensor 1/3"
Image Size Φ3.6
WD 48 mm

34.7 mm

9.7 mm

F/NO 4.5

15

30

Mount C-mount

Measured object

Diameter of measuring object:

3.1 mm

12.8 mm

25.6 mm

Measuring height:

16 mm

10 mm

6 mm

360° Lenses Collection


-->
