1. Ultra-low distortion, high peripheral brightness ratio
2. Optimize the optical design for different magnifications
3. The F interface structure is detachable for easy expansion of other interfaces
4. Image size φ43.2mm, support large target area array and 8K 5μm line array camera
Shop now
General Information |
||
|---|---|---|
| PD No. | VT-LEMF3528MP100 | |
| PD Line | LEM Series | |
Optical Specifications |
||
|---|---|---|
| Resolution | 100 Mega Pixels | |
| Image Size | Φ43.2 mm | |
| Focal Length | 35mm | |
| Mag. Range | 0.25x~0.05x | |
| Aperture, F/# | F2.8-16 | |
| FFL | 46.5 mm | |
| M.O.D | 0.12 m | |
| FOV | 101.4° ×86° ×46° | |
| TV Distortion | 0.004 | |
| Iris | Manual | |
| Focus | Manual | |
Design |
||
|---|---|---|
| Lens Mount | F-Mount | |
| Filter Size | / | |

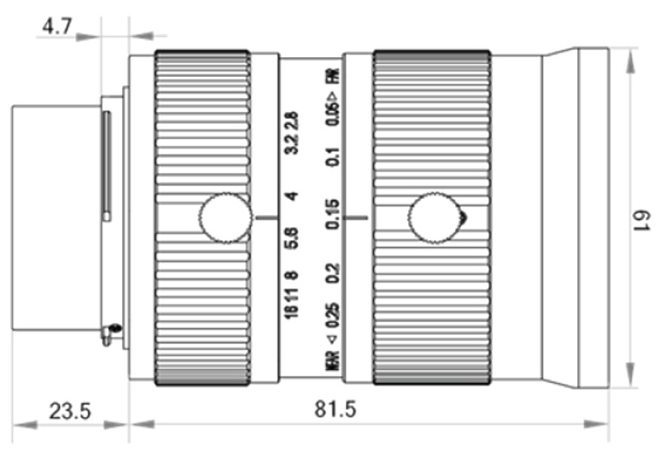

| Dimension | Φ61×81.5 mm | |
| Weight | 536 g | |
