LEN1624MP25-H1.2
1. Ultra-high resolution, high consistency of picture clarity
2. 1.2" large target surface, large aperture, low distortion, high peripheral brightness ratio
3. Achromatic design, better imaging with color camera
4. Excellent high and low temperature stability, suitable for harsh environments
5. Excellent anti-vibration and impact resistance
Inquire now
Product Description

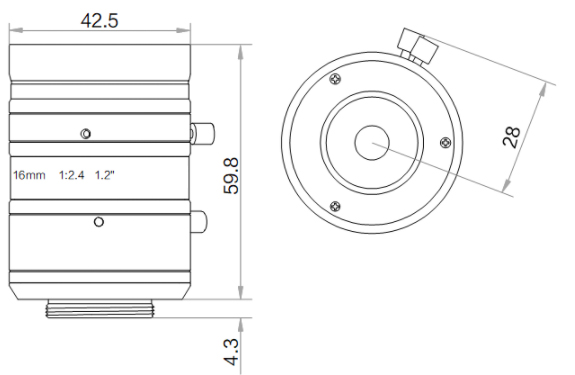

Technical Drawing

General Information:

Model Number CP-0573
Series CB Series
Type Standard FA Lens


Optical Specifications

Resolution 25 Mega Pixels
Image Size 1.2"
Focal length 16.0 mm
Aperture, F/# F2.4-F16
Flange Back 17.526mm
M.O.D 0.1 m
FOV(D×H×V)
D:61.36°

H:48.83°

V:42.86°

TV Distortion 0.07%
Iris Manual
Focus Manual


Mechanical Parameters:

Mount C-mount
Filter Size M40.5×0.5
Dimension Φ42.5 × 59.8 mm
Temperature Range -10- 50°C
Weight 186 g

-->
