Information |
||
|---|---|---|
| PD No. | CP-0817 | |
| PD Line | Mars Series | |
Sensor |
||
|---|---|---|
| Sensor Type | CMOS | |
| Resolution | 8192 px x 1 px | |
| Pixel size | 7 μm x 7 μm | |
| Line Rate | 13 K | |
| Mono/Color | Mono | |
| Image Format | Mono8/10/10Packed/12/12Packed | |
EMVA Data |
||
|---|---|---|
| Signal-to-Noise Ratio (typical) | 46.0 dB | |
| Dynamic range (typical) | 66.0 dB | |
| Exposure Time | 8μs~1s | |
Camera Data |
||
|---|---|---|
| Interface | GigE (1000 Mbit/s) | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 12-pin Hirose connector provides power and I/O;2 differential/single-ended inputs、2 differential/single-ended outputs、1 differential/single-ended configurable input and output，1 GPIO | |
| Power Supply | DC12V~24V | |
Design |
||
|---|---|---|

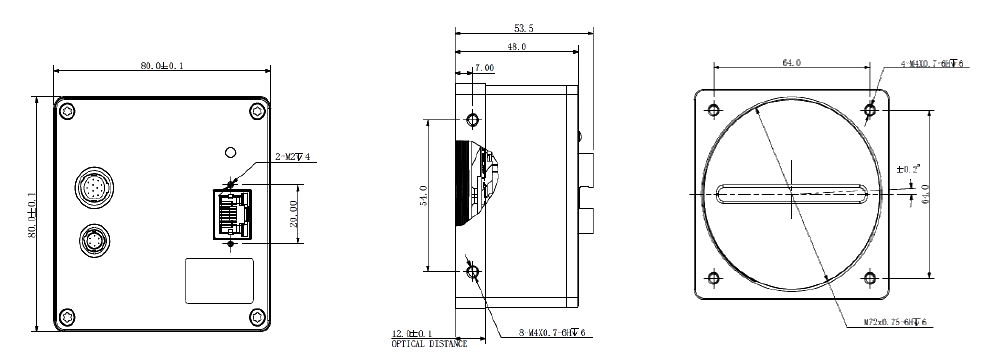

| Dimension (L x W x H) | 80.0 mm × 80.0 mm × 48.0 mm | |
| Lens Mount | M72(FBL 12) | |
| Working Temperature | -30- 50°C（Operating），-30- 80°C（Storage） | |
| Weight（Typical） | 390g | |
Software Environment |
||
|---|---|---|
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows | |
| Conformity | GigE Vision / GenICam | |
