MARS2048C-L49GM
1、VGA resolution @ 49KHz
2、Adopts GigE interface and max. transmission distance of 100 meters without relay
3、Compatible with GigE Vision  Protocol and the third-party software based on the protocol
4、Support Windows, Linux operating platform

Inquire now
Product Description
Product parameters
Product Specifications

Information

PD No. CP-1946
PD Line Mars Series

Sensor

Sensor Vendor CMOSIS
Shutter Rolling Shutter
Sensor Type CMOS
Resolution 2048 px x 1 px
Pixel size 14 μm x 14 μm
Line Rate 49 K
Mono/Color Mono
Image Format Mono8/10/12/10Packed/12Packed

EMVA Data

Signal-to-Noise Ratio (typical) 39.0 dB
Dynamic range (typical) 66.0 dB
Exposure Time 8μs~100ms

Camera Data

Interface GigE (1000 Mbit/s)
Pixel Bit Depth 8 / 10 / 12 bits
Synchronization

● Soft Trigger

● Hardware Trigger

● Free Run

I/O 12-pin Hirose connector provides power and I/O;2 differential inputs, 2 single-ended inputs,1 differential output , 1 GPIO
Power Supply DC12V~24V

Design

Design Compact industrial design

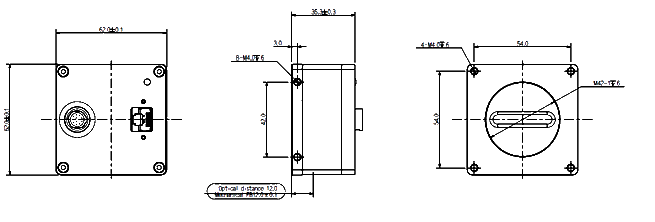

Dimension (L x W x H) 62.0 mm × 62.0 mm × 35.3 mm
Lens Mount M42(FBL 12)
Working Temperature -30- 50°C(Operating),-30- 80°C(Storage)
Weight(Typical) 245g

Software Environment

Driver , SDK Mars Series Camera Secondary Development Kit(iCentral)or Third-party Software meeting with GigE Vision Protocol
Operating System Windows,Linux
Conformity GigE Vision / GenICam

Mars Series Industrial Cameras SDK iCentral

Mars Series Industrial Cameras User Manual

Product Specification

-->
