LEO 4020S-28UM-BC
■ Global , rolling shutter exposure CMOS
■ Super cost-effective
■ Follow GigE Vision, USB3 Vision protocol and GenICam standard
■ Support PoE power supply (specific models)
Inquire now
Product Description

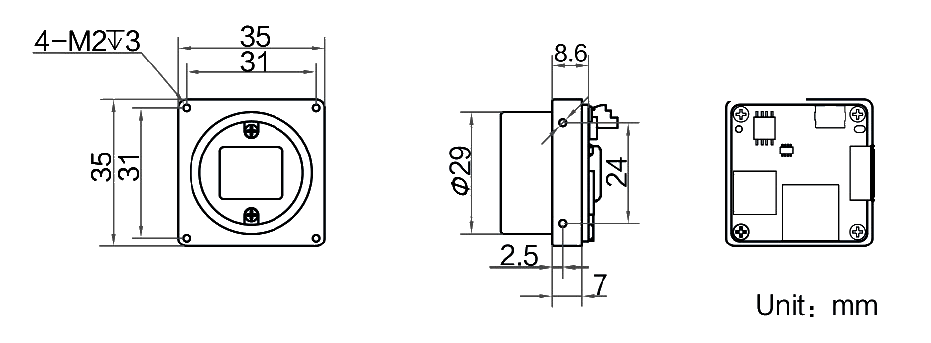

Technical Drawing
Documents & Downloads

Information

PD No. CP-0883
PD Line LEO Series

Sensor

Sensor Vendor Sony
Sensor IMX 226
Shutter Rolling Shutter
Sensor Size 1/1.7"
Sensor Type CMOS
Resolution 4032 px x 3036 px
Pixel size 1.85 μm x 1.85 μm
Frame Rate 28 fps
Mono/Color Mono

EMVA Data

Dynamic range >70.0 dB
Exposure time 11 μs ~ 2 s

Camera Data

Interface USB3.0
Pixel Bit Depth 8 / 10 / 12 bits
Synchronization

● Soft Trigger

● Hardware Trigger

● Free Run

I/O 2 bidirectional configurable I/O(without opto-isolated)
Power Supply 5 VDC

Design

Design Compact industrial design
Dimension (L x W x H) 35 mm × 35 mm × 8.6 mm
Lens Mount C-Mount
Working Temperature 0- 50°C(Operating),-30- 70°C(Storage)
Weight 30g

LEO Series Industrial Cameras SDK.   iDatum

LEO Series Industrial Cameras User Manual

Product Specification


-->
