Information |
||
|---|---|---|
| PD No. | CP-0883 | |
| PD Line | Mars Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | ON Semiconductor | |
| Sensor | PYTHON 1300 | |
| Shutter | Global Shutter | |
| Sensor Size | 1/2" | |
| Sensor Type | CMOS | |
| Resolution | 1280 px x 1024 px | |
| Pixel size | 4.8 μm x 4.8 μm | |
| Frame Rate | 208 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 60.0 dB | |
| Exposure time | 1 μs ~ 1 s | |
Camera Data |
||
|---|---|---|
| Interface | USB3.0 | |
| Pixel Bit Depth | 8 / 10 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 opto-isolated input lines, 1 opto-isolated output lines, 1 non-opto-isolated Configurable input and output lines | |
| Power Supply | 5V/900mA via USB3.0 port | |
Design |
||
|---|---|---|
| Design | Compact industrial design | |

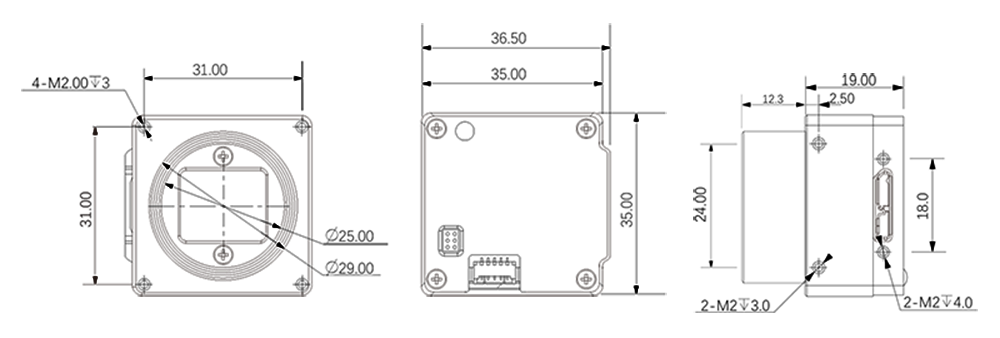

| Dimension (L x W x H) | 35 mm x 35 mm x 19 mm | |
| Lens Mount | CS-Mount | |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） | |
| Weight（Typical） | 46g | |
