Information |
||
|---|---|---|
| PD No. | CP-1203 | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Type | CMOS | |
| Resolution | 8192 px x 2 px | |
| Pixel size | 5 μm | |
| Pixel Clock | 85 MHz | |
| Tap Type |
Base :2 Taps Medium :4 Taps |
|
| Line Rate | 40 KHz | |
| Mono/Color | Mono | |
| Image Format | Mono 8/10/12 | |
EMVA Data |
||
|---|---|---|
| Signal-to-Noise Ratio | 40.0 dB | |
| Dynamic range | >67.0 dB | |
| Exposure Time | 1.5μs~6.6ms | |
Camera Data |
||
|---|---|---|
| Interface | CameraLink | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | CameraLink IO | |
| Power Supply | Via 6-pin Hirose,DC12-24V | |
Design |
||
|---|---|---|

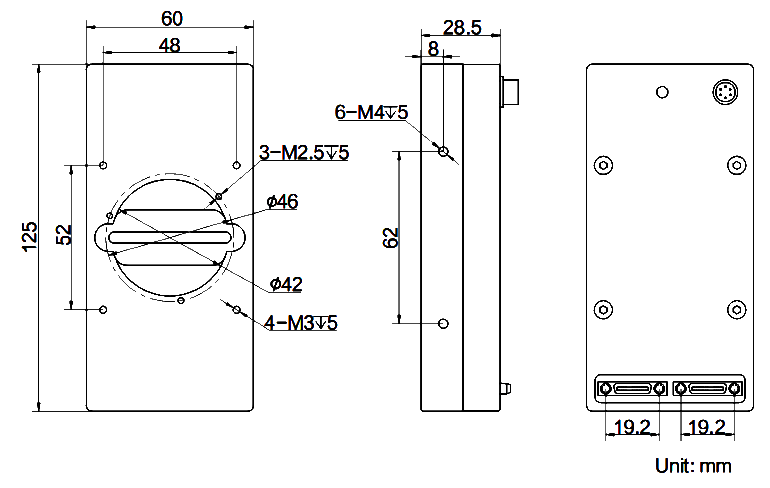

| Dimension(L x W x H) | 125 mm × 60 mm × 28.5 mm | |
| Lens Mount | M42(FBL 10.3) | |
| Operating Temperature | 0- 50°C（Working），-30- 70°C（Storage） | |
| Weight | 360g | |
Software Environment |
||
|---|---|---|
| Driver&SDK | Frame grabber software complies with GenICam protocol | |
| Operating System | Windows | |
| Conformity | Cameralink and GenICam | |
