Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | ON Semiconductor | |
| Sensor | KAI29050 | |
| Shutter | Global Shutter | |
| Sensor Size | 36 mm × 24 mm | |
| Sensor Type | CCD | |
| Resolution | 6576 px x 4384 px | |
| Pixel size | 5.5 μm x 5.5 μm | |
| Frame Rate | 4.5 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 64.0 dB | |
| Signal-to-Noise Ratio | 40.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | Cameralink | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 opto-isolated input, 1 opto-isolated output, 1 bi-directional nonisolated I/O, 1 RS232, and 1 full-duplex RS485 | |
| Power Supply | 12 VDC | |
Design |
||
|---|---|---|

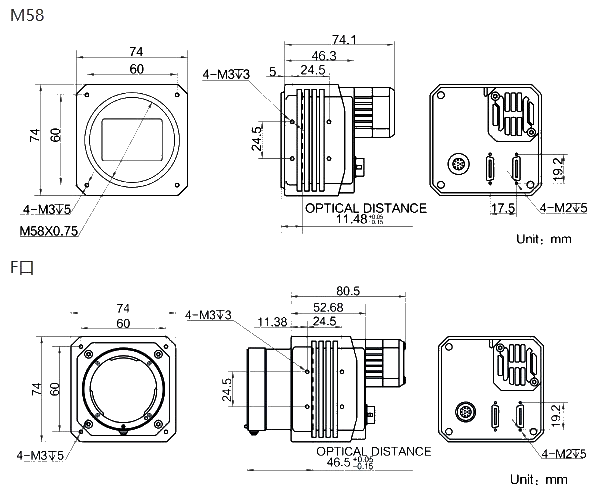

| Dimension(L x W x H) |
M58:74 mm × 74 mm × 74.1 mm F口:74 mm × 74 mm × 80.5 |
|
| Lens Mount | M58 & F-Mount | |
| Operating Temperature | 0- 50°C（Working），-30- 70°C（Storage） | |
| Weight |
M58:450g F-Mount:600g |
|
Software Environment |
||
|---|---|---|
| Driver&SDK | LEO Series Camera Software Suite or 3rd party Cameralink Software | |
| Operating System | Windows | |
| Conformity | Cameralink , GenICam | |
