Nep-HD200

1、HD video real-time display-1080P-4K
2、High quality sensor-The whole series adopt Sony、Panasonic and other high quality image sensors
3、Image store-Large capacity internal or external storage interface
4、Simple setting(HD series)-Through the panel keypad or remote control easily set the parameter
5、Smart measurement(SVS Series)-Built-in software, through keyboard and mouse observe real-time measurement data

Inquire now

Shop now

Product Description

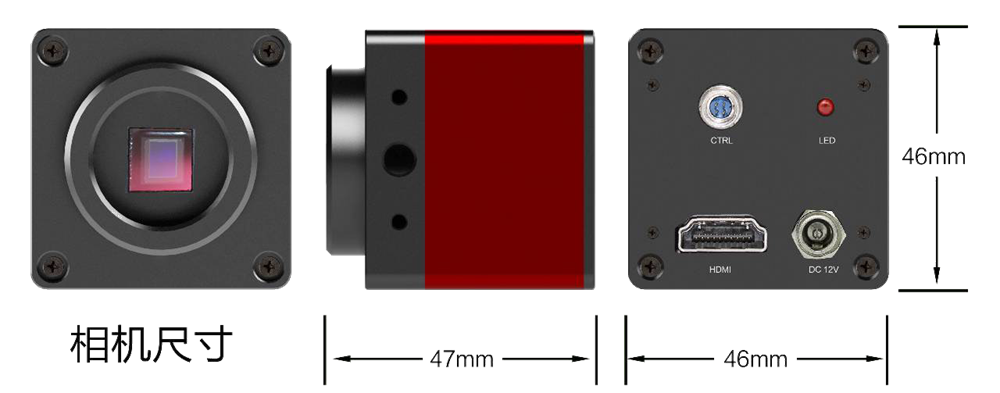

Technical Drawing

Documents & Downloads

Information
	PD No.	CP-0823
	PD Line	Nepture Series

Sensor
	Resolution	1920 X 1080
	Sensor Size	1/3"
	Pixel size	2.75 X 2.75μm
	Live Frame Rate	60fps @ 1920x1080
	Recording Frame Rate	30fps @ 1920x1080

Camera Data
	Video Output	1080P @ HDMI
	Power Supply	DC-12V / 2A

Design
	Dimension (L x W x H)	47 mm x 46 mm x 46 mm
	Lens Mount	C-mount （CS-Mount can be customized）
	Working Temperature	-30 - 50°C（Operating），-30 - 80°C（Storage）

Neptune Series Cameras User Manual
