Nep-SVS400L
1、HD video real-time display-1080P-4K
2、High quality sensor-The whole series adopt Sony、Panasonic and other high quality image sensors
3、Image store-Large capacity internal or external storage interface
4、Simple setting(HD series)-Through the panel keypad or remote control easily set the parameter
5、Smart measurement(SVS Series)-Built-in software, through keyboard and mouse observe real-time measurement data
Inquire now
Product Description

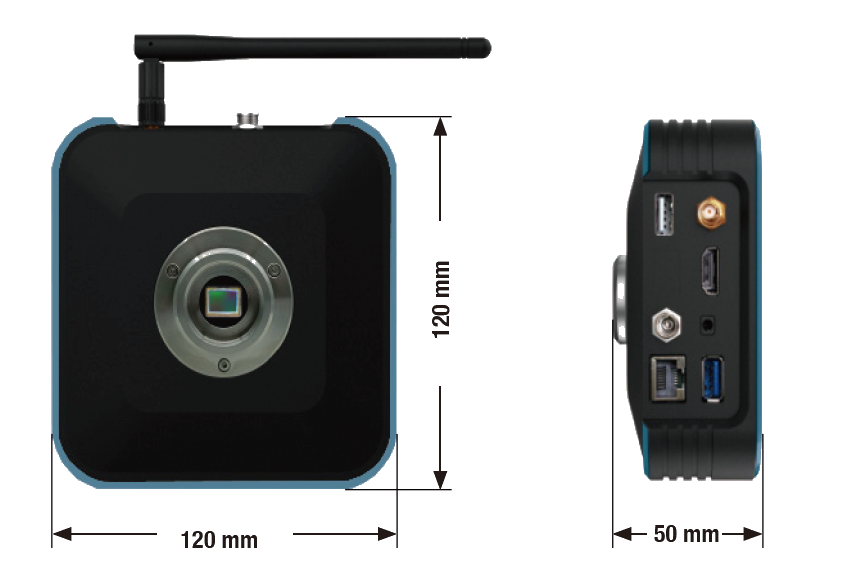

Technical Drawing
Documents & Downloads

Information

PD No. CP-0823
PD Line Nepture Series

Sensor

Resolution 3840 X 2140
Sensor Size 1/1.7"
Pixel size 1.85 X 1.85 μm
Shutter Rolling Shutter
Frame Rate 30 fps
Processor Arm Core A17 quad core 1.4Ghz + ARM A7 single core 900Mhz

Camera Data

Memory 2G DDR3 RAM + 128G built-in memory + USB external memory interface
Video Output 4k @ HDMI 2.0
Interface HDMI 2.0 / USB3.0 / USB2.0 / Gigabit Ethernet / Audio Input
Wireless Transmission 5G Wifi (802.11ac)
Power Supply DC-12V / 1A

Design

Dimension (L x W x H) 120 mm x 120 mm x 50 mm
Lens Mount C-mount (CS-Mount can be customized)
Working Temperature -30 - 50°C(Operating),-30 - 80°C(Storage)

Software Environment

Operating System In depth customization Linux,Smartly measure vision software

Neptune Series Cameras User Manual


-->
