Information |
||
|---|---|---|
| PD No. | MARS2048-L49GC | |
| PD Line |
Mars Series
|
|
Sensor |
||
|---|---|---|
| Sensor Vendor | E2V | |
| Sensor | E2V | |
| Sensor Type | CMOS | |
| Resolution | 2048 px x 2 px | |
| Pixel size | 10 μm x 10 μm | |
| Line Rate | 49 K | |
| Mono/Color | Color | |
| Image Format |
Mono8,BayerRG8/10/10Packed/12/12Packed,RGB8packed,YUV422Packed
|
|
EMVA Data |
||
|---|---|---|
| Signal-to-Noise Ratio (typical) | 45.0 dB | |
| Dynamic range (typical) | 73.0 dB | |
| Sensitivity | 162 | |
| Exposure Time |
8μs~1s
|
|
Camera Data |
||
|---|---|---|
| Interface | GigE (1000 Mbit/s) | |
| Pixel Bit Depth | 8 / 10 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 12-pin Hirose connector provides power and I/O;2 differential/single-ended inputs, 2 differential/single-ended outputs,1 differential/single-end configurable input and output , 1 GPIO | |
| Power Supply |
DC12V~24V
|
|
Design |
||
|---|---|---|
| Design | Compact industrial design | |

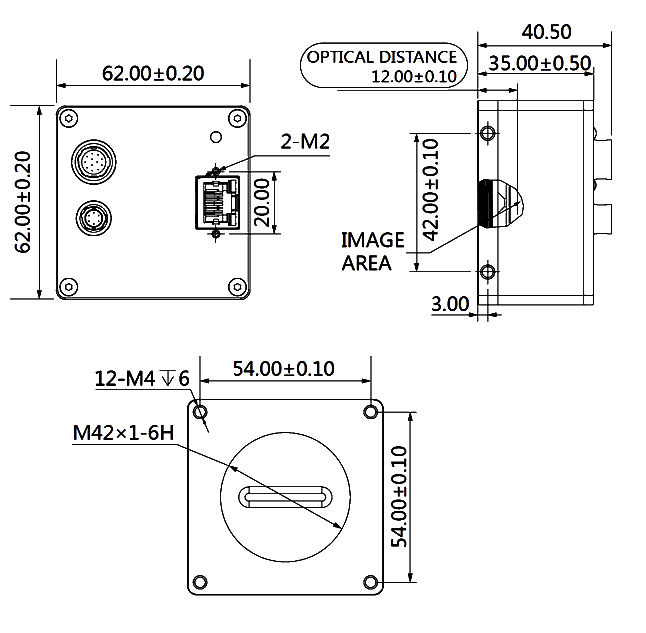

| Dimension (L x W x H) | 62.0 mm × 62.0 mm × 35.0 mm | |
| Lens Mount | M42(FBL 12) | |
| Working Temperature | -30- 50°C（Operating），-30- 80°C（Storage） | |
| Weight（Typical） |
230g
|
|
Software Environment |
||
|---|---|---|
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows，Linux | |
| Conformity | GigE Vision / GenICam | |
