General Information: |
||
---|---|---|
Model Number | CP-0986 | |
Series | CD Series | |
Type |
Standard FA Lens
|
Optical Specifications |
||
---|---|---|
Resolution | 10 Mega Pixels | |
Image Size | 4/3" CCD/CMOS | |
Focal length | 35 mm | |
Aperture, F/# | F2.0-22 | |
Flange Back | 17.526mm | |
Back Focus | 18.65mm | |
M.O.D | 0.2 m | |
FOV(D×H×V) |
D:36.6° H:29.6° V:22.4° |
|
TV Distortion | -0.56%@y=11.5mm | |
Relative Illumination | NA | |
Focus Range | NA | |
Iris | Manual | |
Focus | Manual | |
Max Chief Ray Angle | NA | |
Coating Wavelength |
400-1100 nm
|
Mechanical Parameters: |
||
---|---|---|
Mount | C-mount | |
Front/Rear Effective Dia. | NA | |
Filter Thread | M40.5× 0.5 | |

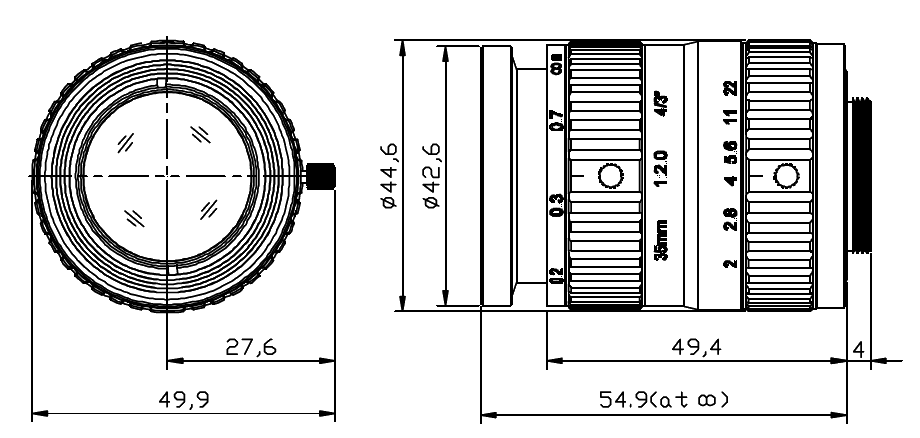

Dimension | Φ49.9 × 54.9 mm | |
Temperature Range | -10- 50°C(Working),-20- 60°C(Storage) | |
Weight | NA |
