VT-LEM08528CD-H2
VT-LEM industrial lens is a high-performance and cost-effective product designed and manufactured by machine vision based on multi-year market application feedback, professional optical lens assembly and coating process, advanced optical structure, and performance and quality similar to foreign products. Comparable, the entire series reaches 5 million optical points.
Inquire now
Product Description

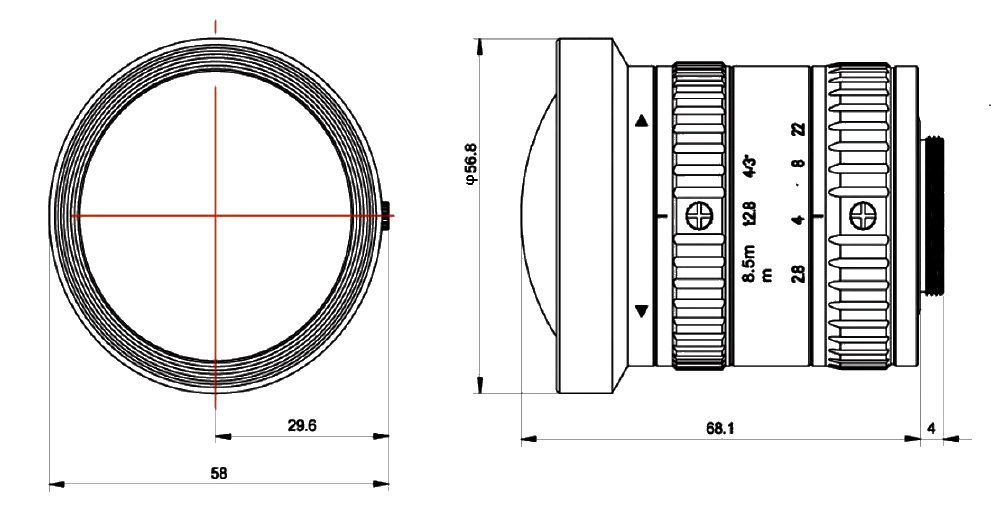

Technical Drawing
Documents & Downloads

General Information:

Model Number CP-0443
Series CD Series
Type Standard FA Lens


Optical Specifications

Resolution 10 Mega Pixels
Image Size 4/3" CCD/CMOS
Focal length 8.5 mm
Aperture, F/# F2.8-22
Flange Back 17.526mm
Back Focus 18.87 mm
M.O.D 0.5 m
FOV(D×H×V)

D:107.4°

H:94.9°

V:77.9°

TV Distortion -4.54%@y=11.5mm
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max Chief Ray Angle NA
Coating Wavelength 400-1100 nm


Mechanical Parameters:

Mount C-mount
Front/Rear Effective Dia. NA
Dimension Φ58 × 72.1 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens


-->
