Information |
||
|---|---|---|
| PD No. | CLW2-MP-0.5X-510D | |
| PD Line | CLW2 Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Data |
||
|---|---|---|
| Mag.(x) | 0.5x | |
| WD | 510±3 mm | |
| MAX. Sensor Size | 9.0 Φmm(1/1.8") | |
| Field of View |
1/3” (4.8x3.6) 9.6x7.2 1/2” (6.4x4.8) 12.8x9.6 |
|
| F/# | F14.2 | |
| MTF | >60lp/mm | |
| Distortion | <0.1% | |
| Telecentricity | / | |
| NA | 0.0174 | |
| Resolution | 19.3 μm | |
| D.O.F | 4.5 mm | |

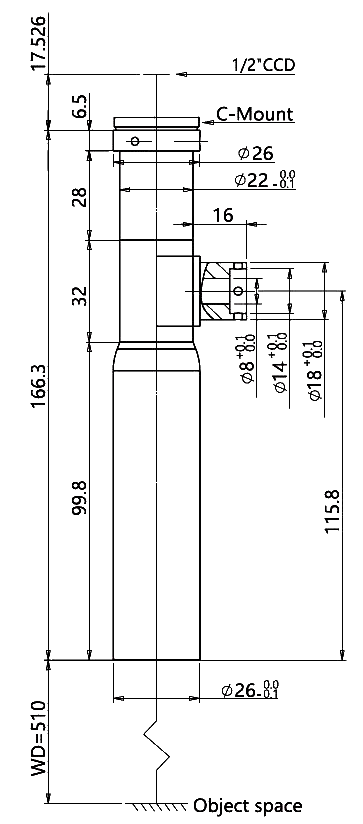

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| With Coaxial Light | Yes | |
| Lenght | 163.5 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
