Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | CLW2 Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Data |
||
|---|---|---|
| Mag.(x) | 0.5x | |
| WD | 110±2 mm | |
| MAX. Sensor Size | 11.0 Φmm(2/3") | |
| Field of View |
1/2” (6.4x4.8) 12.8x9.6 1/1.8” (7.13x5.37) 14.3x10.7 2/3” (8.8x6.6) 17.6x13.2 |
|
| F/# | F9.6 | |
| MTF | >80lp/mm | |
| Distortion | <1.0% | |
| Telecentricity | <0.1° | |
| NA | 0.026 | |
| Resolution | 12.9 μm | |
| D.O.F | 3.1 mm | |

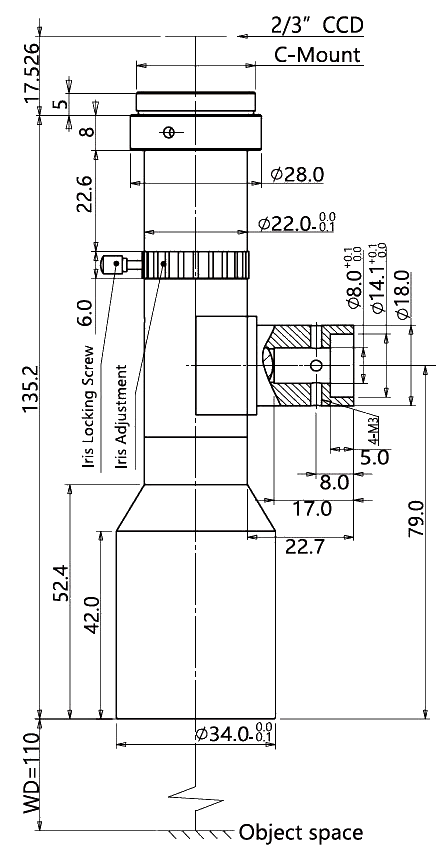

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| With Coaxial Light | Yes | |
|
Aperture adjustment |
Yes | |
| Lenght | 135.2 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
