Information |
||
|---|---|---|
| PD No. | CLW2-MP-1.0X-65 | |
| PD Line | CLW2 Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Data |
||
|---|---|---|
| Mag.(x) | 1.0x | |
| WD | 65±1 mm | |
| MAX. Sensor Size | 11.0 Φmm(2/3") | |
| Field of View |
1/2" (6.4*4.8) 6.4x4.8 1/1.8" (7.13*5.37) 7.13x5.37 2/3" (8.8*6.6) 8.8x6.6 |
|
| F/# | F11.1 | |
| MTF | >70lp/mm | |
| Distortion | <0.36% | |
| Telecentricity | <0.1° | |
| NA | 0.045 | |
| Resolution | 7.5 μm | |
| D.O.F | 0.9 mm | |

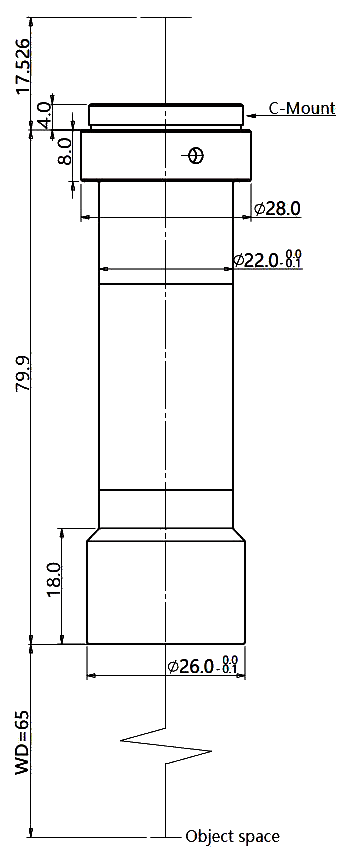

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| With Coaxial Light | No | |
| Lenght | 79.9 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
