Information |
||
|---|---|---|
| PD No. | BTL-0.436X-258-FF(LM) | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 100 Φmm | |
| Mag.(x) | 0.436x | |
| WD | 258±4 mm | |
| Max. Sesnor Size | 44 Φmm (Full frame 35mm) | |
| Field of View |
Line-2K(20.48mm) 46.6 mm Line-4K(28.67mm) 65.2 mm Line-8K(40.96mm) 93.1 mm 35mm (36.0*24.0) 81.8x54.6 mm |
|
| F/# | F10.3 | |
| MTF | >90lp/mm | |
| D.O.F | ±4.2 mm@F20 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 635±4 mm | |

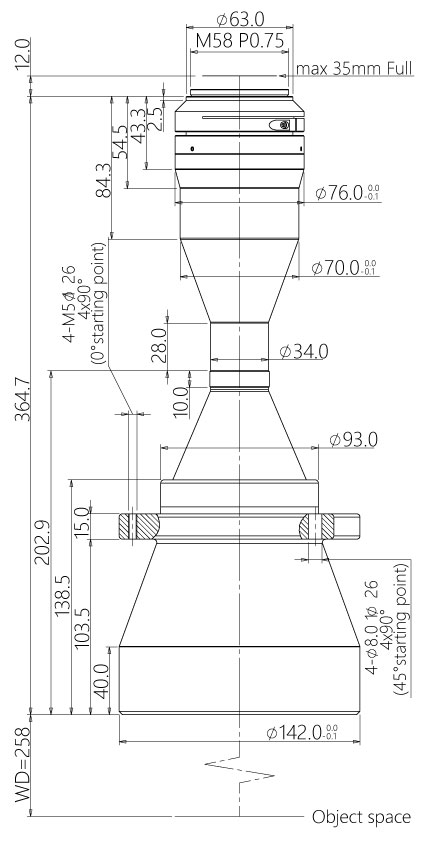

Design |
||
|---|---|---|
| Lens Mount | F-mount | |
| Length | 364.7 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 3.8 Kg | |
