Information |
||
|---|---|---|
| PD No. | BTL-0.413X-228-21(LM) | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 80 Φmm | |
| Mag.(x) | 0.413x | |
| WD | 228±4 mm | |
| Max. Sesnor Size | 33(2") Φmm | |
| F/# | F7.8 | |
| MTF | >110lp/mm | |
| D.O.F | ±3.8 mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 509±4 mm | |

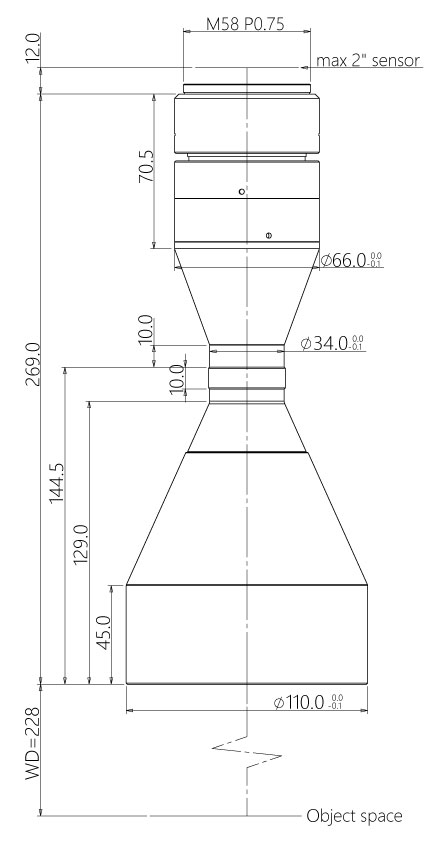

Design |
||
|---|---|---|
| Lens Mount | F-mount | |
| Length | 269.0 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 2.5 Kg | |
