Information |
||
|---|---|---|
| PD No. |
BTL-0.11X-300-H1(LM) |
|
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 150 Φmm | |
| Mag.(x) | 0.110x | |
| WD | 300±5 mm | |
| Max. Sesnor Size | 16.6(1") Φmm | |
| Field of View |
1.1" KAI-04050(12.85x9.64) 116.8x87.6 1.1" CMV4000(11.26x11.26) 102.4x102.4 1.1" ICX674/694/814(12.5x10.0) 113.6x90.9 |
|
| F/# | F6.5 | |
| MTF | >120lp/mm | |
| D.O.F | ±52.9 mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 660±5 mm | |

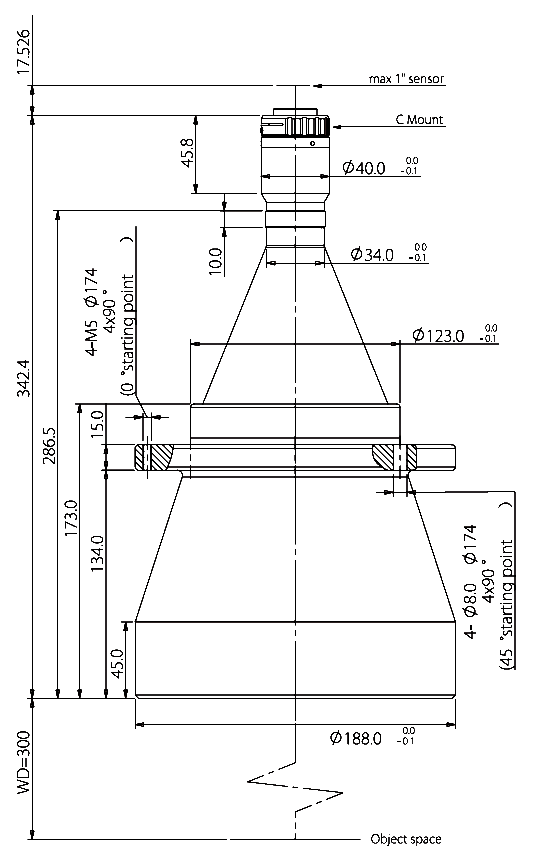

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 324.4 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 5.8 Kg | |
