BTL-0.638X-73-H1

1. Optimized for 1/2.5"~1.1" C-Mount cameras;
2. Largest FOV from 26mm upto 300mm;
3. Excellent resolution for high pixel cameras;
4. Low distortion, good telecentricity, big aperture and big depth of field for high end application.

Inquire now

Shop now

Product Description

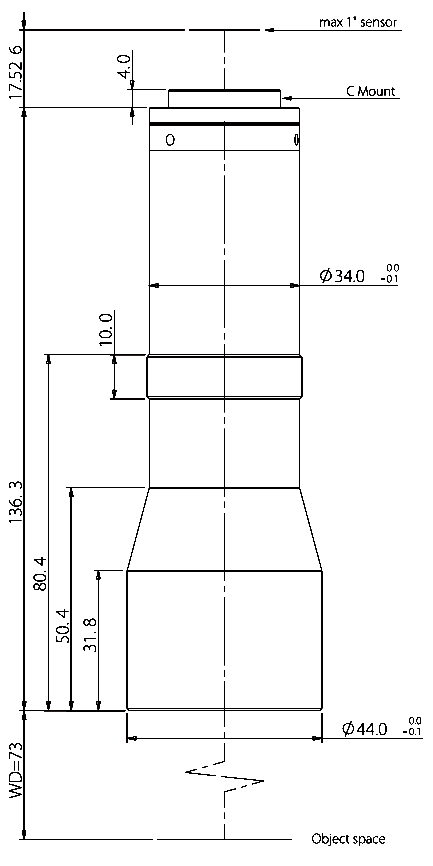

Technical Drawing

Documents & Downloads

Information
	PD No.	BTL-0.638X-73-H1
	PD Line	BTL Series
	Type	Bi-Telecentric Lenses

Lens Data
	FOV	26 Φmm
	Mag.(x)	0.638x
	WD	73±1 mm
	Max. Sesnor Size	16.6(1") Φmm
	Field of View	1" KAI-04050(12.85x9.64) 20.1x15.1 1" ICX674/694/814(12.5x10.0) 17.7x17.7 1" KAI-04050(12.85x9.64) 19.6x15.7
	F/#	F8.7
	MTF	>90lp/mm
	D.O.F	±1.6 mm@F16
	Distortion	<0.1%
	Telecentricity	<0.1°
	I/O	227±1 mm
