Information |
||
|---|---|---|
| PD No. | BTL-0.06X-330-23(LM) | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 190 Φmm | |
| Mag.(x) | 0.060x | |
| WD | 330±5 mm | |
| Max. Sesnor Size | 11.4(2/3") Φmm | |
| F/# | F4.9 | |
| MTF | >180lp/mm | |
| D.O.F | ±122 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 761±5 mm | |

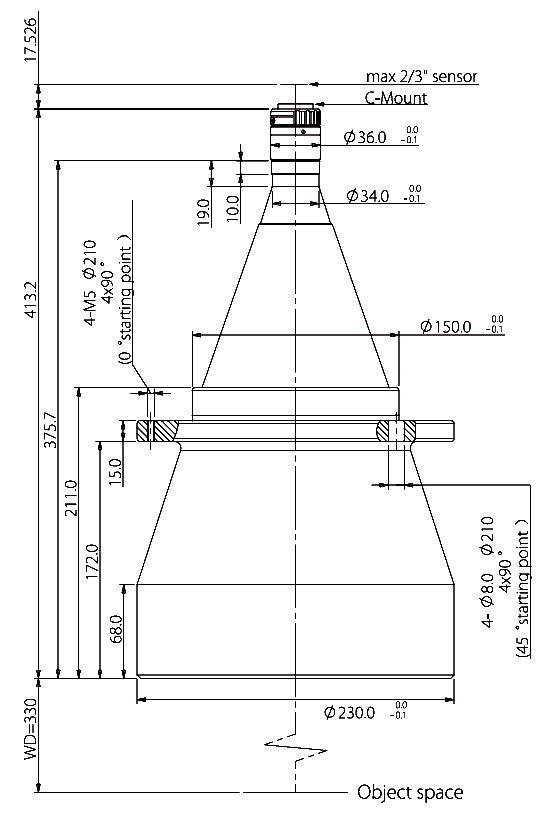

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 413.2 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 9.7 Kg | |
