Information |
||
|---|---|---|
| PD No. | BTL-0.106X-258-23(LM) | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 100 Φmm | |
| Mag.(x) | 0.106x | |
| WD | 258±4 mm | |
| Max. Sesnor Size | 11.4(2/3") Φmm | |
| F/# | F4.9 | |
| MTF | >185lp/mm | |
| D.O.F | ±39.2 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 516±4 mm | |

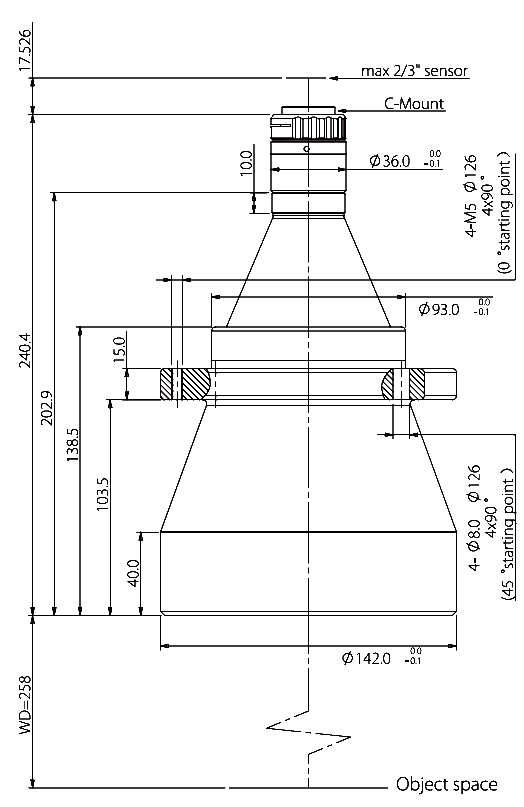

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 240.0 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 3.1 Kg | |
