Information |
||
|---|---|---|
| PD No. | CP-1731 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 42 Φmm | |
| Mag.(x) | 0.214x | |
| WD | 118±3 mm | |
| Max. Sesnor Size | 9.0(1/1.8") Φmm | |
| F/# | F4.6 | |
| MTF | >195lp/mm | |
| D.O.F | ±9.6 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 249±3 mm | |

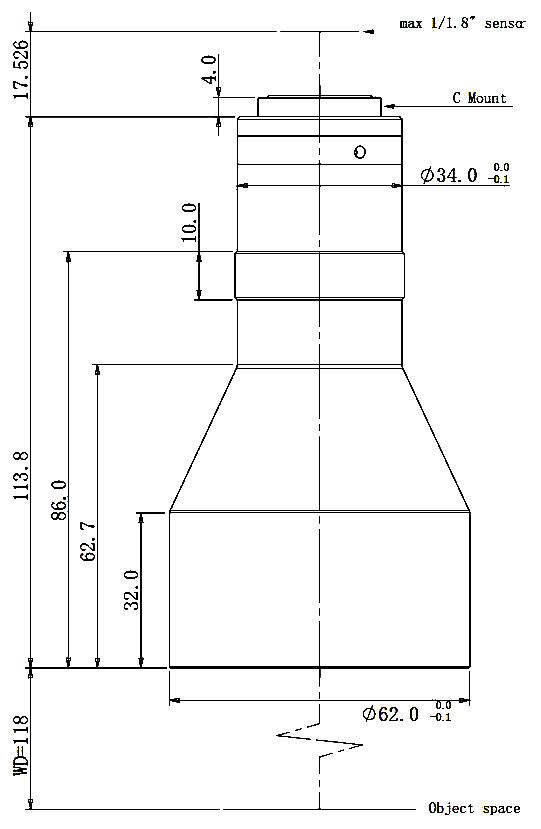

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 113.8 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 0.4 Kg | |
