Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 80 Φmm | |
| Mag.(x) | 0.090x | |
| WD | 228±4 mm | |
| Max. Sesnor Size | 7.2(1/2.5") Φmm | |
| F/# | F4.2 | |
| MTF | >205lp/mm | |
| D.O.F | ±54.3 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 413±4 mm | |

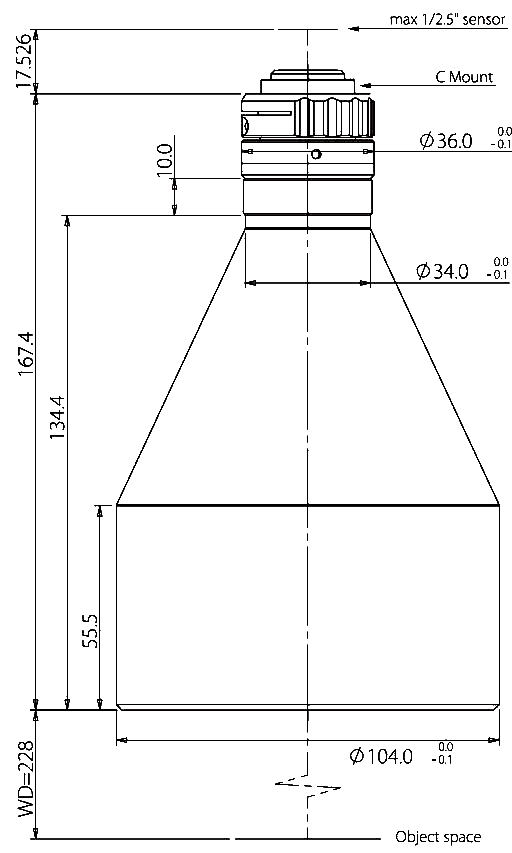

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 167.4 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 1.9 Kg | |
