General Information |
||
|---|---|---|
| PD No. | CP-0995 | |
| PD Line | M12 Series | |
| Type |
Standard FA Lens
|
|
Optical Specifications |
||
|---|---|---|
| Resolution | 3 Mega Pixels | |
| Image Size | 1/1.8" CCD/CMOS | |
| Focal length | 4.5 mm | |
| Aperture, F/# | F1.8 | |
| Back Focus | 6.99 mm | |
| M.O.D | 0.1 m | |
|
FOV(D×H×V) |
D:90° H:78° V:62° |
|
| TV Distortion | -2.8% | |
| TTL | 30.13 mm | |
| Relative Illumination | >60% | |
| Iris | Fixed | |
| Max Chief Ray Angle | 8.25° | |
| Coating Wavelength |
400-950 nm
|
|

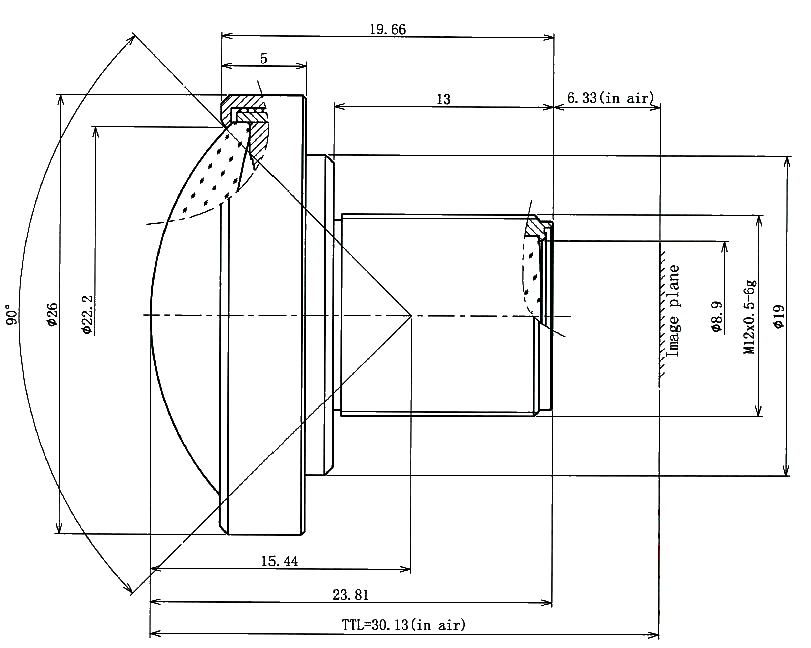

Mechanical Parameters |
||
|---|---|---|
| Mount | S-mount(M12) | |
| Filter Size | NA | |
| Built-in ir-cut | NA | |
| Front/Rear Effective Dia. | Φ22.2 / Φ8.9 | |
| Dimension | Φ26 × 23.81mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
