VT-LEM0618(i)-M12-MP
1. Megapixel High Resolution Design
2. Optimized for 1/3” and ?” Sensors with Small Pixels
3. Multiple f/# Options for Performance
4. High Cost Performance
Inquire now
Product Description
Product parameters
Product Specifications

General Information

PD No. CP-661
PD Line M12 Series
Type Standard FA Lens


Optical Specifications

Resolution 1 Mega Pixels
Image Size 1/3" CCD/CMOS
Focal length 6.0 mm
Aperture, F/# F1.8
Back Focus 8.75 mm
M.O.D 0.2 m
FOV(D×H×V)

D:60°

H:48°

V:34.5°

TV Distortion NA
TTL 23.16±0.2 mm
Iris Fixed
Coating Wavelength 400-950 nm


Mechanical Parameters

Mount S-mount(M12)
Filter Size NA
Built-in ir-cut NA
Front/Rear Effective Dia. Front Φ7.4 / Rear Φ6.9

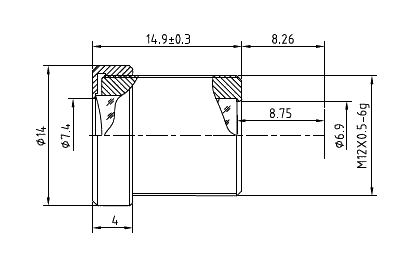

Dimension Φ14 × 14.9±0.3 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens

-->
