General Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | Line Scan Series | |
| Type | Line Scan V-Mount Lens | |
|
|
||
|---|---|---|
| Resolution | 16k3.57μ | |
| Format | 66 mm | |
| Focal Length | 95.0 mm | |
| Aperture, F/# | F4.0 | |
| Flange Back | 81.2 mm | |
| Object Distance | 1980.85 mm | |
| TV Distortion | 0.005% | |
| TTL | 132.0 | |
| Conjuguate Distance | 2112.94 mm | |
| Magnificatioh | 0.05x | |
| Iris | Manual | |
| Focus | Manual | |
| Max. Shief Ray Angle | NA | |
| Coating Wavelength | 400-950 nm | |
|
|
||
|---|---|---|
| Mount | V-mount | |
| Filter Size | NA | |
| Bulit-in IR-cut | NA | |
| Front/Rear Effective Dia. | NA | |

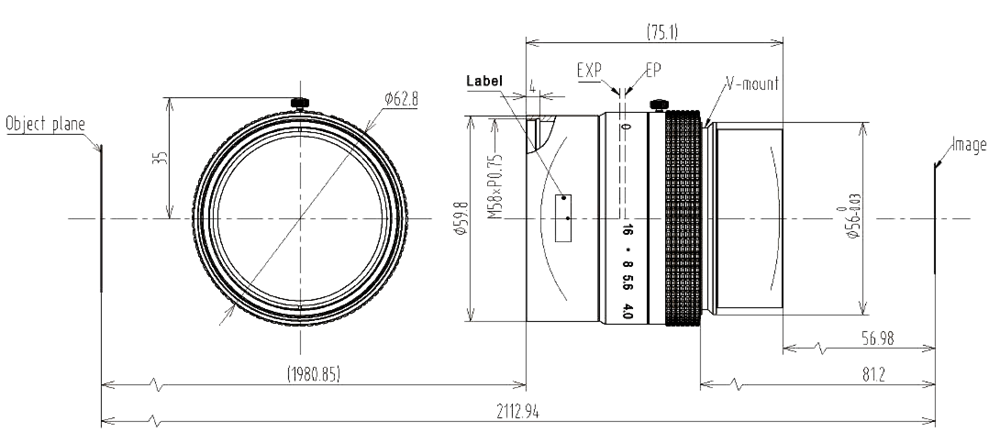

| Dimension | Φ62.8 × 75.1 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
