VT-LHF5018MP5
1. Wide wavelength from 400~950nm
2. Full-frame design covering φ43.2mm
3. Support 4K line scan cameras
4. Low cost
Inquire now
Product Description

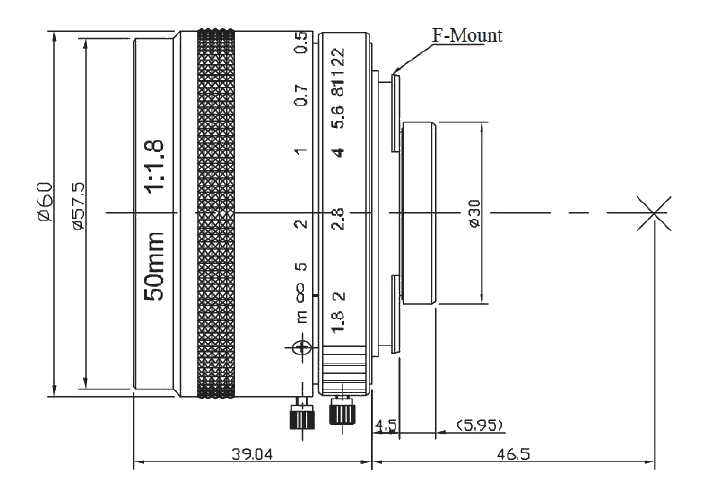

Technical Drawing
Documents & Downloads

General Information

PD No. CP-0968
PD Line Large Format Series
Type Large Format F/T mount lenses


Optical Specifications

Resolution 30lp/mm 5 MP
Image Size 43mm
Focal length 50.0 mm
Aperture, F/# F1.8-22
Flange Back NA
Back Focus 36.33 mm
M.O.D 0.4 m
FOV(D×H×V)

D:45°

H:/°

V:/°

TV Distortion <1%
TTL NA
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max Chief Ray Angle NA
Coating Wavelength 400-950 nm


Mechanical Parameters

Mount F-mount
Filter Size M52 × 0.75
Built-in ir-cut NA
Front/Rear Effective Dia. NA
Dimension Φ60 × 39.04 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight 210 g

Line Scan industrial lens


-->
