Information |
||
---|---|---|
PD No. | CP-1535 | |
PD Line | Mars Series |
Sensor |
||
---|---|---|
Sensor Vendor | ON Semiconductor | |
Sensor | PYTHON 480 | |
Shutter | Global Shutter | |
Sensor Size | 1/3.6" | |
Sensor Type | CMOS | |
Resolution | 800 px x 600 px | |
Pixel size | 4.8 μm x 4.8 μm | |
Frame Rate | 120 fps | |
Mono/Color | Mono |
EMVA Data |
||
---|---|---|
Dynamic range | 60.0 dB | |
Signal-to-Noise Ratio (typical) | >38.5 dB |
Camera Data |
||
---|---|---|
Interface | GigE | |
Pixel Bit Depth | 8 / 10 bits | |
Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
I/O |
1 input(opto-isolated), 1 output(opto-isolated) |
|
Power Supply | 6-24 VDC |
Design |
||
---|---|---|
Design | Compact industrial design | |

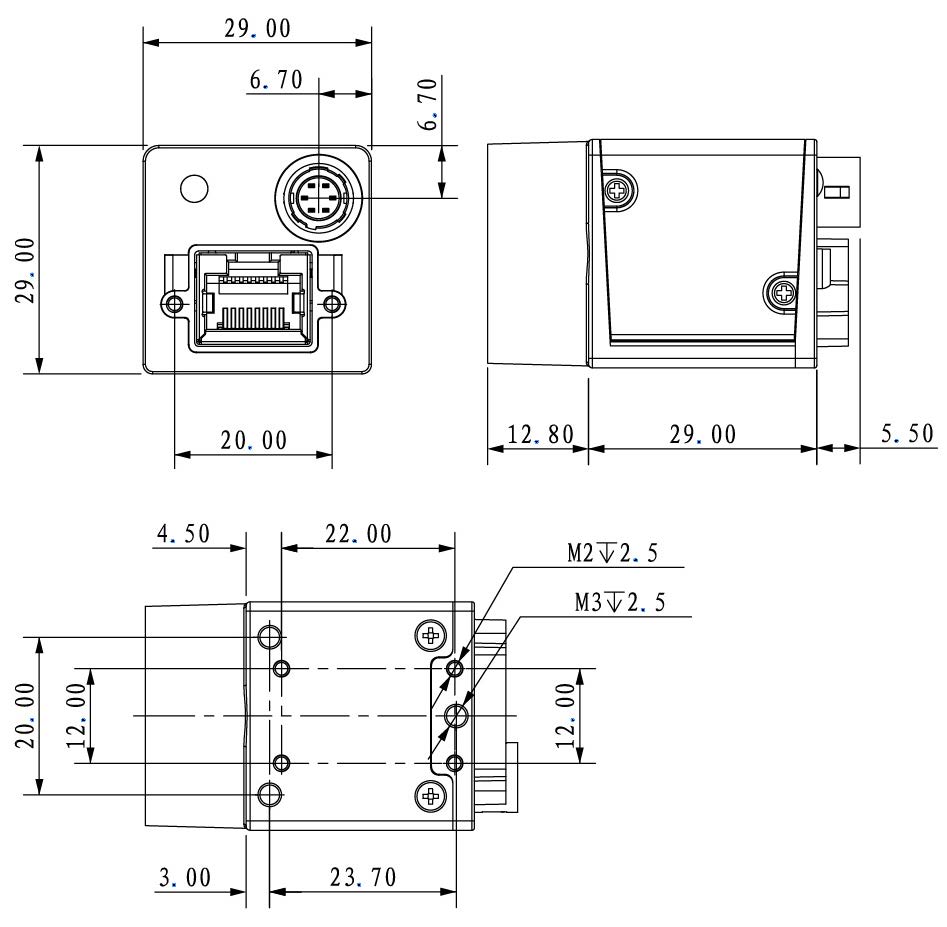

Dimension (L x W x H) | 29 mm x 29 mm x 29 mm | |
Lens Mount | CS-mount | |
Working Temperature | -30 - 50°C(Operating),-30 - 80°C(Storage) | |
Weight(Typical) |
60g
|
Software Environment |
||
---|---|---|
Driver , SDK | Mars Series Camera Secondary Development Kit(iCentral)or Third-party Software meeting with GigE Vision Protocol | |
Operating System | Windows,Linux | |
Conformity | GigE Vision and GenICam |
