Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | HR+ Series | |
|
|||||
|---|---|---|---|---|---|
|
● Using high-power LED, higher brightness. ● Add concentrator bowl for longer working distance. ● High density LED arrays for the intensity illumination. |
|||||
|
|||||
|---|---|---|---|---|---|
|

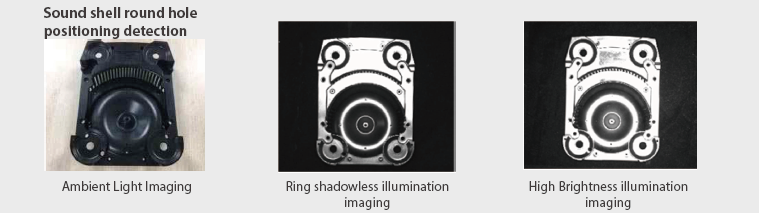

● Robot-guided grasping ● Appearance inspection of high-speed assembly lines ● Logistics barcode, character detection |
|||||
Specifications |
||
|---|---|---|
| Emission angle | 90° | |
| Supply Voltage | 24 V | |
| Power Cons. |
Red 620-630nm：3.6-9.6 W Blue 465-475nm：7.2-14.4 W White：7.2-14.4 W |
|
| Outer diam. | 82-152 mm (Other can be customized) | |
| Inner diam. | 30-100 mm (Other can be customized) | |
| High | 33 mm (Other can be customized) | |
| Wavelength range | Red: 620-630nm; Blue: 460-475nm; Green: 520-530nm; | |
| Color temperature (white) | 6000-10000K | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
