Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | GWR Series | |
|
|||||
|---|---|---|---|---|---|
|

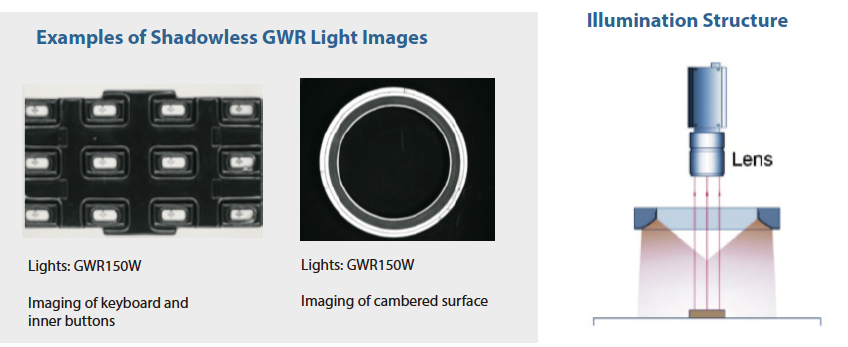

● Compact design, convenient to installation. ● he lights achieve a uniform region with high luminance by using unique illumination mechanism. |
|||||
|
|||||
|---|---|---|---|---|---|
|
● Inspection of defects on unfairness specular surface ● Food and medicine packages ● The welding points of electronic components, etc.. |
|||||
Specifications |
||
|---|---|---|
| Supply Voltage | 24 V | |
| Outer diam. | φ166 mm | |
| Inner diam. | φ116 mm | |
| Height | 26 mm | |
| Power Cons. |
Red：13.2 W Blue/White/Green：19.2 W |
|
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
