Information |
||
---|---|---|
PD No. |
CT MED-M5CU-O |
|
PD Line | Medical Series |
Sensor |
||
---|---|---|
Sensor Vendor |
Sony |
|
Sensor | IMX 250 | |
Shutter | Global Shutter | |
Sensor Size | 2/3” | |
Sensor Type | CMOS | |
Resolution | 2448 px x 2048 px | |
Pixel size | 3.45 μm x 3.45 μm | |
Frame Rate | 74 fps | |
Mono/Color | Color |
EMVA Data |
||
---|---|---|
Dynamic Range(typical) | 75.4 dB | |
Signal-to-Noise Ratio (typical) | 40.0 dB |
Camera Data |
||
---|---|---|
Interface | USB3.0 | |
Pixel Bit Depth | 8 / 10 bits | |
I/O |
1 input(opto-isolated), 1 output(opto-isolated), 1 bi-directional custom non-isolated I/O |
|
Power Supply | USB3.0 / 3.5W |
Design |
||
---|---|---|

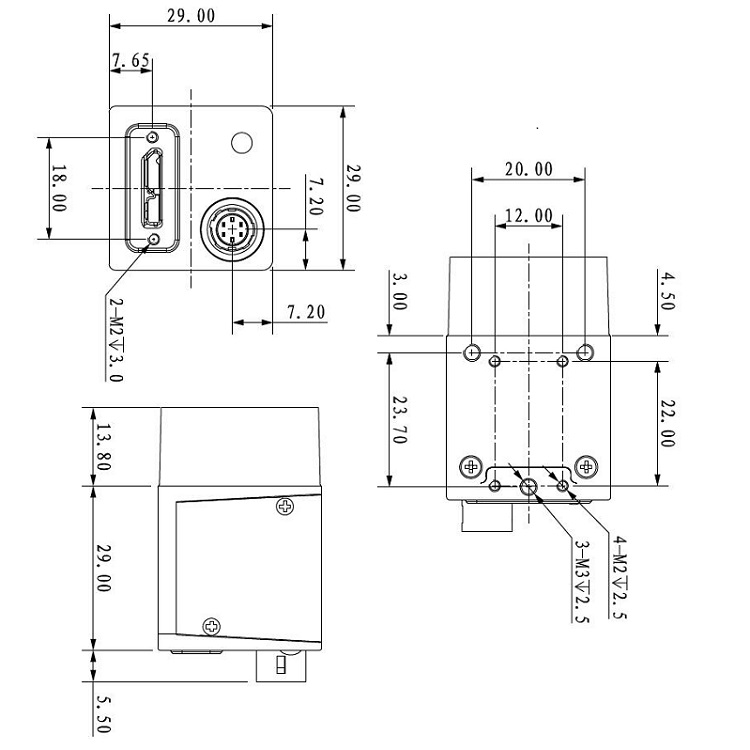

Dimension | 29 mm x 29 mm x 29 mm | |
Lens Mount | C-mount | |
Working Temperature | 0 - 50°C(Operating),-30 - 70°C(Storage) |
Software Environment |
||
---|---|---|
Driver , SDK | LEO Series Camera Secondary Development Kit(iDatum)or Third-party Software meeting with USB3 Vision Protocol | |
Operating System | Windows,Linux | |
Conformity | USB3 Vision and GenICam |
