Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | LT3 TI Series | |
|
|||||
|---|---|---|---|---|---|
|
● Telecentric lens cooperate with TI series telecentric illuminator, can remove diffused back-illumination introduced border confuse, and increase profile measurement accuracy. ● Telecentric Illumination can provide telecentric optical system with higher light couple efficiency and signal-noise ratio. ● Using telecentric illuminator can get better DOF and telecentricity. |
|||||
|
|||||
|---|---|---|---|---|---|
|
● Inspection of LCD, TP screen, LTO circuit, PCB circuit, medicine and food packaging, defects of printing surface on the assembly line, etc.. ● Appearance inspection of food or medicine
|
|||||
Specifications |
||
|---|---|---|
| Output Beam Dia. | 20-200 mm | |
| LED Rated Power | 1W/3W(Standard 1W) | |
| Color |
Red 630nm：3.5V / 350mA Blue 460nm：3.5V / 350mA Green 520nm：3.5V / 350mA White 430~680nm：3.5V / 350mA |
|
|
|
||
|
|
|---|

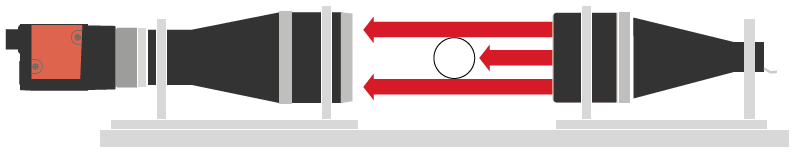

Installation NoteThe telecentric illuminator and lens should be kept in the same axis, the higher be parallelism the better the result. |
|---|
