Information |
||
|---|---|---|
| PD No. | CP-0823 | |
| PD Line | LT4 Series | |
Input Features |
||
|---|---|---|
| Voltage Range | 88～264VAC | |
| PMW Frequency | 47～63HZ | |
Output Features |
||
|---|---|---|
| Output Type | Constant Current | |
| Number of Channels |
2 |
|
| Output Adjustable Range |
0 ～ 100% |
|
| Maximum Output DC Voltage |
5V（Adjustable） |
|
| Total Output Power |
≤6W，12W also available if requested |
|
| Single Output Maximum Power |
≤3W，6W also available if requested |
|
| Brightness Adjustment Mode |
Button /Remote Control |
|
| Brightness Adjustment Level |
256 levels |
|
Trigger Features |
||
|---|---|---|
| Trigger Mode | Positive/Negative | |
| Trigger Input Voltage | 5～24V | |
Protection |
||
|---|---|---|
| Over voltage protection; over current protection; over temperature；protection | ||
Environment |
||
|---|---|---|
| Operating Temperature | 0 ～ 40℃ | |
| Storage Temperature | -10 ～ 50℃ | |
Others |
||
|---|---|---|

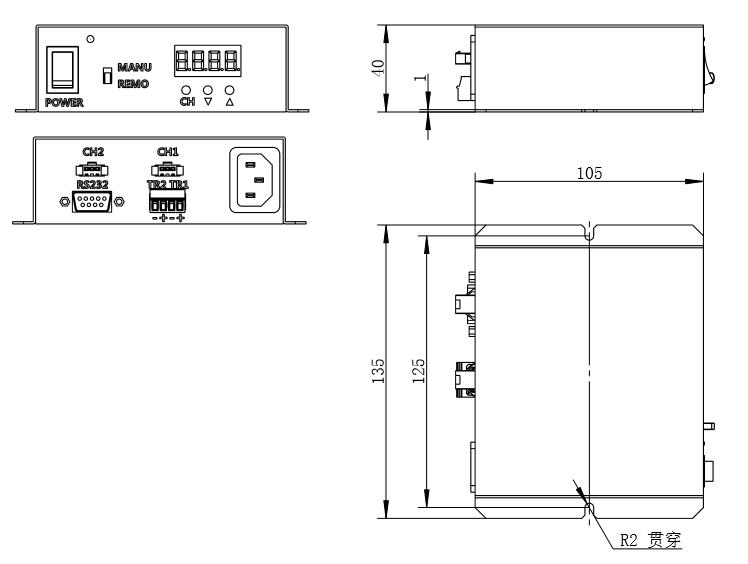

| Shell Dimension | 135×105×40 mm | |
| Surfacing | Spray-paint | |
