Information |
||
|---|---|---|
| PD No. | CP- | |
| PD Line | LEO SM Series | |
Tools |
||
|---|---|---|
| Vision Tool | Existence、Count、Positioning、Logic、Measurement、Recognition | |
| Solution Capacity | Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored. | |
| Communication Protocol | RS-232、TCP、UDP、FTP、Modbus、EtherNet/IP | |
Sensor |
||
|---|---|---|
| Sensor Type | / | |
| Sensor Size | 1/2.9” | |
| Shutter | Rolling Shutter | |
| Resolution | 704 px × 540 px | |
| Pixel size | 6.9 μm x 6.9 μm | |
| Frame Rate | 60 fps | |
| Mono/Color | Mono | |
| Image Format | / | |
| Memory/Storage | / | |
| Exposure Time | / | |
Camera Data |
||
|---|---|---|
| Ethernet | Fast Ethernet | |
| Digital I/O | / | |
| Power Consumption | / | |
Design |
||
|---|---|---|

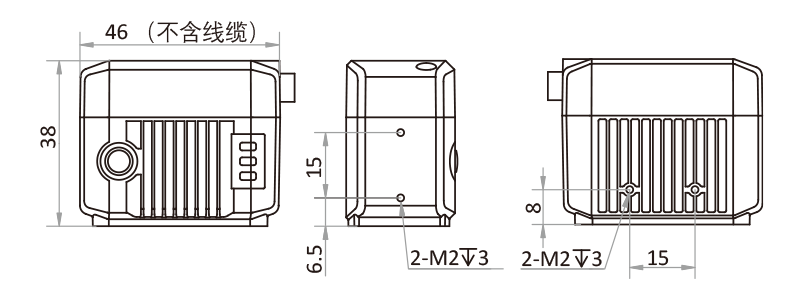

| Dimension(L x W x H) | / | |
| Lens Mount | M12 | |
| Focal Length | 6.72mm | |
| Lens Cap | / | |
| Light Source | W | |
| Temperature | / | |
| Weight | / | |
Software Environment |
||
|---|---|---|
| Driver , SDK | / | |
| Operating System | Windows | |
