Information |
||
|---|---|---|
| PD No. | DM-W40S-M06SM-SxST | |
| PD Line | DataMagic Series | |
Performance |
||
|---|---|---|
| Symbologies | 1D：Code 39，Code 93，Code 128，CodaBar，EAN8，EAN13... 2D：QR Code，Data Matrix... | |
| Frame Rate | 60 fps | |
| Reading Speed | 41 codes/sec | |
| Sensor size | 1/2.9” | |
| Sensor type | CMOS, Global Shutter | |
| Resolution | 704 × 540 px | |
| Pixel size | 6.9 μm x 6.9 μm | |
| Focal length | 6.72mm | |
| Protocols | Serial, TCP Client, PROFINET, EtherNet/IP, SLMP, Modbus，TCP Server, FTP, UDP, Fins, MELSEC | |
Electrical Data |
||
|---|---|---|
| Data interface | Fast Ethernet（100 Mbit/s） | |
| I/O | 1 none-isolated input，1 none-isolated output，2 bi-directional none-isolatedI/O，1 RS-232 | |
| Power | 12 ~ 24 VDC | |
| Power Consumption | 10.6 W@24V | |
Design |
||
|---|---|---|
| Protection | IP65 | |
| Working distance | 40 ~ 120 mm | |

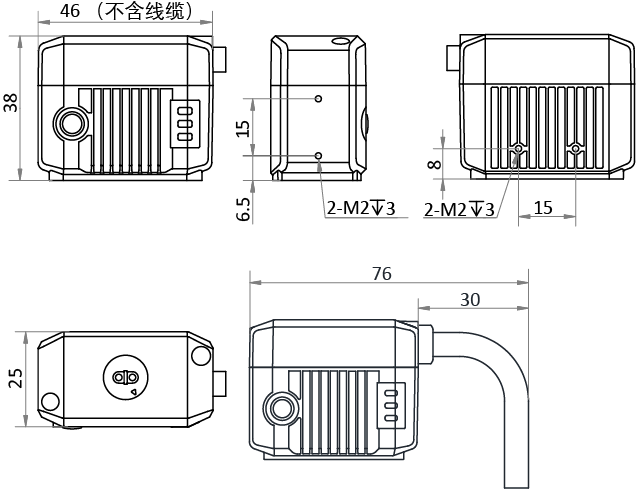

| Dimensions | 46 mm x 38 mm x 25 mm | |
| Lens | M10-Mount | |
| Lighting | Integrated LEDs, red/white/blue light optional | |
| Aimer | Green LED | |
| Working Temperature | 0- 50°C（Operating），-30- 70°C（Storage） | |
| Weight（Typical） | 160g | |
Software Environment |
||
|---|---|---|
| Driver , SDK | DM-Datum | |
