Information |
||
|---|---|---|
| PD No. | CP-1809 | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Gpixel | |
| Sensor | GMAX0806 | |
| Shutter | Global Shutter | |
| Sensor Size | 22.16 mm × 15.22 mm | |
| Sensor Type | CMOS | |
| Resolution | 7904 px x 5432 px | |
| Pixel size | 2.8 μm x 2.8 μm | |
| Frame Rate | 16.3 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 69.0 dB | |
| Signal-to-Noise Ratio | 39.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | CoaXPress | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 opto-isolated input, 1 opto-isolated output, 1 RS232 | |
| Power Supply | 9-24 VDC | |
Design |
||
|---|---|---|

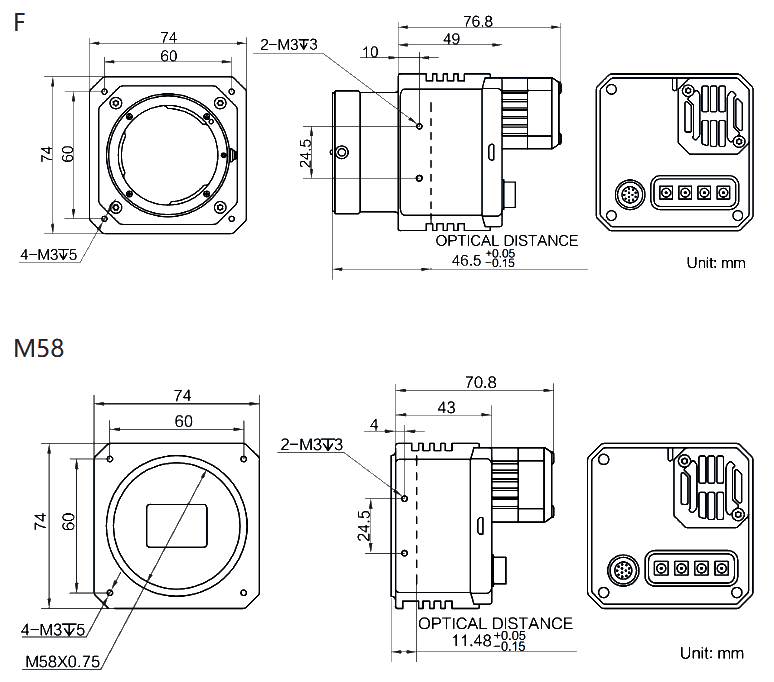

| Dimension(L x W x H) |
M58:74 mm × 74 mm × 70.8 mm F-Mount:74 mm × 74 mm × 76.8 mm |
|
| Lens Mount | M58 & F-Mount | |
| Operating Temperature | 0- 50°C（Working），-30- 70°C（Storage） | |
| Weight |
M58:540g F-Mount:650g |
|
Software Environment |
||
|---|---|---|
| Driver&SDK | Frame grabber software complies with CoaXPress protocol | |
| Operating System | Windows | |
| Conformity | GigE Vision and GenICam | |
